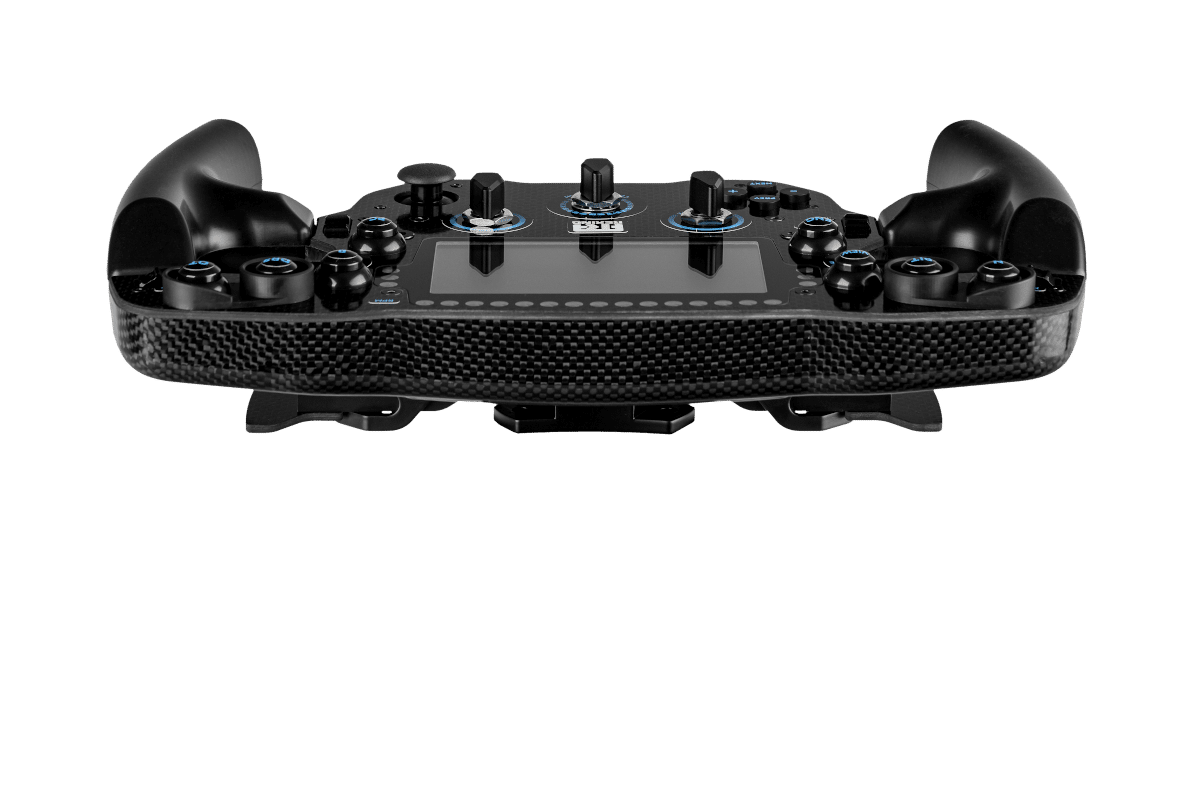

Rexing formula steering wheel is used as addon wheel for PC games and simulations featuring:
- Full carbon fiber body
- 4.3″ wide angle color LCD by Ultimate Game Tech
- 15 rpm LEDs, 6 additional marshal LEDs
- Polyurethane rubber grips
- Analog joystick/thumbstick
- 13 configurable push-buttons:
- 8 highest quality industrial push-buttons with snap action
- 4 high-quality tactile switches arranged in D-Pad configuration
- configurable center push on analog joystick
- 6 thumb rotary encoders
- 2 potentiometers
- 12 position switch
- tempered glass display cover
- all aluminium knobs
- Magnetic paddle shifters
- Hall sensor clutch paddles (separate axes or single axis with bite point adjustment, configurable in software)
- OPTIONAL: Third set of paddles, each with dual action (possible to push it and pull it – with firm center position, providing a total of 4 configurable positions on just 2 paddles)
- Aluminium hub on the back – accepts 50.8 mm and 70 mm wheel bases and quick releases
- Non-proprietary connector on the back of the wheel (easy to replace or make your own cable)
- High quality USB spiral cable included
- Requires only one USB connection
- Included with each steering wheel: 2 sets of 12 high-quality elastic self-adhesive labels for push-buttons, and various additional labels for customization
BACK OF THE STEERING WHEEL FEATURES:
-
- Rexing full carbon fiber formula steering wheel specifications:
- Weight: 1.050 g
- Diameter: 290 mm
- Grip section oval 42 x 26 mm at the thickest section
- Entirely made of carbon fiber and epoxy composite
- How to connect the steering wheel to my PC?
The wheel is connected to a USB port using a coiled USB cable that comes with the steering wheel. Plug it directly into a powered USB hub if you have one. If your USB hub is too far, use a higher quality extension USB cable not longer than 2 m, and plug it directly into your PC (PC back USB connector), not in the hub. If you need a longer cable, use an active USB cable (repeater). Also, plug the coiled cable directly into the active cable, and active cable directly into the computer.
CORRECT WAY:
Rexing coiled cable -> Powered hub -> PC
Rexing coiled cable -> extension USB cable up to 2 m -> PC
Rexing coiled cable -> active USB cable (repeater) up to 5 m -> PCNOT RECOMMENDED (can cause issues with connection):
Rexing coiled cable -> USB extension cable -> Powered hub -> PC
Rexing coiled cable -> USB extension cable longer than 2 m -> PCWill it work with Fanatec base?It can be connected to Fanatec base using Fanatec podium hub. Please refer to Fanatec website to check wheel compatibility with podium hub.
Will it work with Logitech G27/G29 or Trustmaster base?These wheels require an additional adapter. Contact us if you need one, we can supply a 3D printed adapter free of charge.
Which software is used in Rexing formula wheel?Rexing formula wheel uses Ultimate Game Tech software. Please note software is needed only to show data on the display unit. The steering wheel can be used without any software with full functionality, except the display.
How to use clutch bite point adjustment?By default, clutch bite adjustment is disabled. This means that each clutch paddle operates its own axis. To enable clutch bite adjustment (and single axis clutch operation), go to UGT Manager > Input Devices > UGT Race LCD. Check the “Launch Control Enabled” box. Click “Save Settings”. Now you can adjust clutch 2 maximum point either with Clutch Adjust slider in software or with “Clutch Bite” potentiometer at the front of the wheel.
How to use the front potentiometer for clutch bite adjustment?In UGT Manager go to Input Devices > UGT Race LCD V2. In General Settings check the “Launch Control Enabled” box and then move the clutch adjustment slider all the to the left (0 position). Now the potentiometer will adjust the maximum bite of clutch two.
How to configure the second (‘Display’) potentiometer?The second potentiometer is usually assigned to display brightness. For configuration, open UGT manager and go to Global options > Global mappings. Then find “Brightness control” setting and assign the potentiometer to that setting.
Brightness changes are only visible while the display is functioning, not when it’s idle.Do I need to calibrate the analog joystick and the clutch paddles?The analog joystick and the clutch paddles are already calibrated. However, if the travel range is not satisfactory (start position is not at 0% or end position does not reach 100%), calibration is required. It should be done from UGT software > Input devices > UGT Race LCD. In the “Analog Settings” box click “Calibrate” and follow the instructions. Click “Save Settings” when you’re done.
Important: do not use Windows calibration because it will interfere with default calibration and cause unsatisfactory results.How to assign joystick in games?While it can be assigned directly in most games, in some games (F1 2019, for example) analog movement of the joystick can be misinterpreted. We recommend using third-party programs, like “Joy2Key” or freeware “Antimicro”. Using these apps, joystick movements can be assigned to keyboard keys (arrow keys for navigation). It can even be assigned to mouse movement.
What is the product warranty?Rexing steering wheel comes with a two-year warranty period.
Can I return the product and receive full refund?Yes, you can return the product if it is unused and in original packaging within 14 days of the delivery date. Please contact us if you wish to do so. Only shipping costs are non-refundable.
-
The wheel is connected to a USB port using a coiled USB cable that comes with the steering wheel. Plug it directly into a powered USB hub if you have one. If your USB hub is too far, use a higher quality extension USB cable not longer than 2 m, and plug it directly into your PC (PC back USB connector), not in the hub. If you need a longer cable, use an active USB cable (repeater). Also, plug the coiled cable directly into the active cable, and active cable directly into the computer.
CORRECT WAY:
Rexing coiled cable -> Powered hub -> PC
Rexing coiled cable -> extension USB cable up to 2 m -> PC
Rexing coiled cable -> active USB cable (repeater) up to 5 m -> PCNOT RECOMMENDED (can cause issues with connection):
Rexing coiled cable -> USB extension cable -> Powered hub -> PC
Rexing coiled cable -> USB extension cable longer than 2 m -> PCSOFTWARE INSTALLATION
In order to install Ultimate Game Tech software to PC, follow this order:
Download and install the latest UGT software version from here:
https://rexing.eu/downloads/UGTSetup.msiFor recent software updates, please refer to this link: https://www.asetek.com/simsports/ugt-ultimate-game-tech/
INSTALLATION PROCEDURE:
Plug in device
Open UGT Manager
Run each installed game once – games will now be detected by UGT Manager
Toggle data output on each game by clicking on the data output button. Enabled = data is outputting. Disabled = not outputting. Info = data output is controlled by the game. Click on “Info” for any additional steps required.
Go to Global Options->Global mappings and map a button to Page_Up and Page_Down to change layouts when in a game
Go to Global Options->Global Settings to configure LED brightness and behavior and layouts available and special layout behavior.
Individual game settings and mapping can be configured by clicking on the game’s mappings or settings button. Note, this overrides the global options for the specific game.
Make sure you are always running updated firmware.
CLUTCH BITE POINT ADJUSTMENT
By default, clutch bite adjustment is disabled. This means that each clutch paddle operates its own axis. To enable clutch bite adjustment (and single axis clutch operation), go to UGT Manager > Input Devices > UGT Race LCD. Check the “Launch Control Enabled” box. Click “Save Settings”. Now you can adjust clutch 2 maximum point either with Clutch Adjust slider in software or with “Clutch Bite” potentiometer at the front of the wheel.
The front potentiometer can be used for clutch bite adjustment in the following way: In UGT Manager go to Input Devices > UGT Race LCD V2. In General Settings check the “Launch Control Enabled” box and then move the clutch adjustment slider all the to the left (0 position). Now the potentiometer will adjust the maximum bite of clutch two.
DISPLAY POTENTIOMETER
The second (‘Display’) potentiometer is usually assigned to display brightness. For configuration, open UGT manager and go to Global options > Global mappings. Then find “Brightness control” setting and assign the potentiometer to that setting.
Brightness changes are only visible while the display is functioning, not when it’s idle.
IN CASE YOU CHANGED THE DEFAULT SETTINGS, RETURN EVERYTHING TO THESE VALUES AND CLICK “SAVE”:
NOTE: if you previously clicked “restore to default settings”, calibration for clutch paddles and joystick will have to be done again
